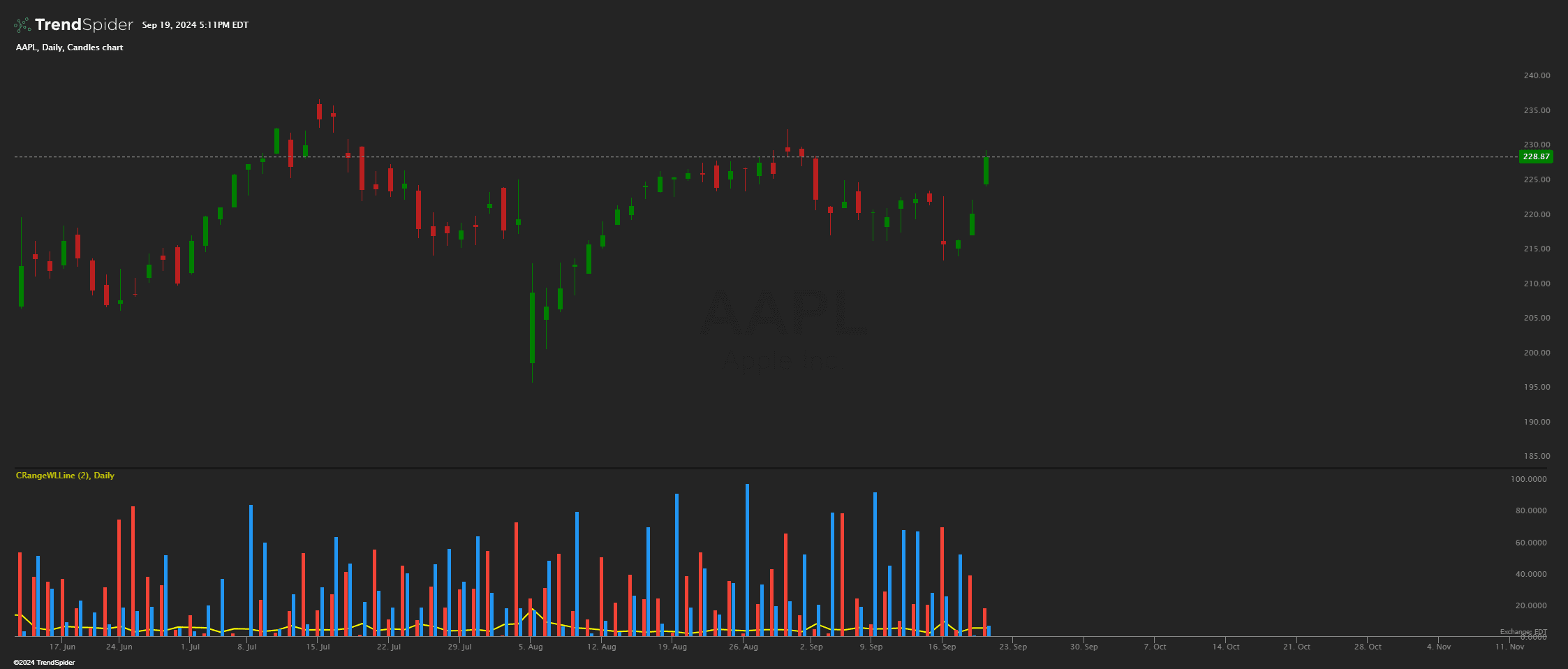

Upper and Lower Wick % of Total Range

A custom indicator created by James on TrendSpider. You can import this custom indicator into your TrendSpider account. Don't have TrendSpider? Create an account first, then import the custom indicator.

Source code

This indicator had been implemented by James in JavaScript on TrendSpider. Check out the developer documentation to learn more about JS on TrendSpider.

// This indicator was made by AI and has not been QA checked by the TrendSpider development team. The indicator is for entertainment purposes only.

describe_indicator('Upper and Lower Wick % of Total Range', 'lower', { shortName: 'CRangeWLLine', decimals: 'by_symbol_2x' });

// ==============================
//        INPUT PARAMETERS
// ==============================

// Input for line thickness
const lineThickness = input.number('Line Thickness', 2, { min: 1, max: 10 });

// ==============================
//          CALCULATIONS
// ==============================

// Calculate the total range (High - Low)
const totalRange = sub(prices.high, prices.low);

// Calculate the upper wick range
const upperWickRange = for_every(prices.high, prices.close, prices.open, (high, close, open) => close > open ? high - close : high - open);

// Calculate the lower wick range
const lowerWickRange = for_every(prices.low, prices.close, prices.open, (low, close, open) => close > open ? open - low : close - low);

// Calculate the upper wick percentage of the total range
const upperWickPercentage = for_every(upperWickRange, totalRange, (upperWick, range) => range > 0 ? (upperWick / range) * 100 : 0);

// Calculate the lower wick percentage of the total range
const lowerWickPercentage = for_every(lowerWickRange, totalRange, (lowerWick, range) => range > 0 ? (lowerWick / range) * 100 : 0);

// ==============================
//           PLOTTING
// ==============================

// Paint the total range as a line
paint(totalRange, {
    name: 'Total Range',
    color: 'yellow', // Black color for total range
    thickness: lineThickness,
    style: 'line'
});

// Paint the upper wick percentage as a histogram
paint(upperWickPercentage, {
    name: 'Upper Wick %',
    color: '#f44336', // Red color for upper wick
    thickness: lineThickness,
    style: 'histogram'
});

// Paint the lower wick percentage as a histogram
paint(lowerWickPercentage, {
    name: 'Lower Wick %',
    color: '#2196f3', // Blue color for lower wick
    thickness: lineThickness,
    style: 'histogram'
});
