Momentum with Custom Moving Average

A custom indicator created by James on TrendSpider. You can import this custom indicator into your TrendSpider account. Don't have TrendSpider? Create an account first, then import the custom indicator.

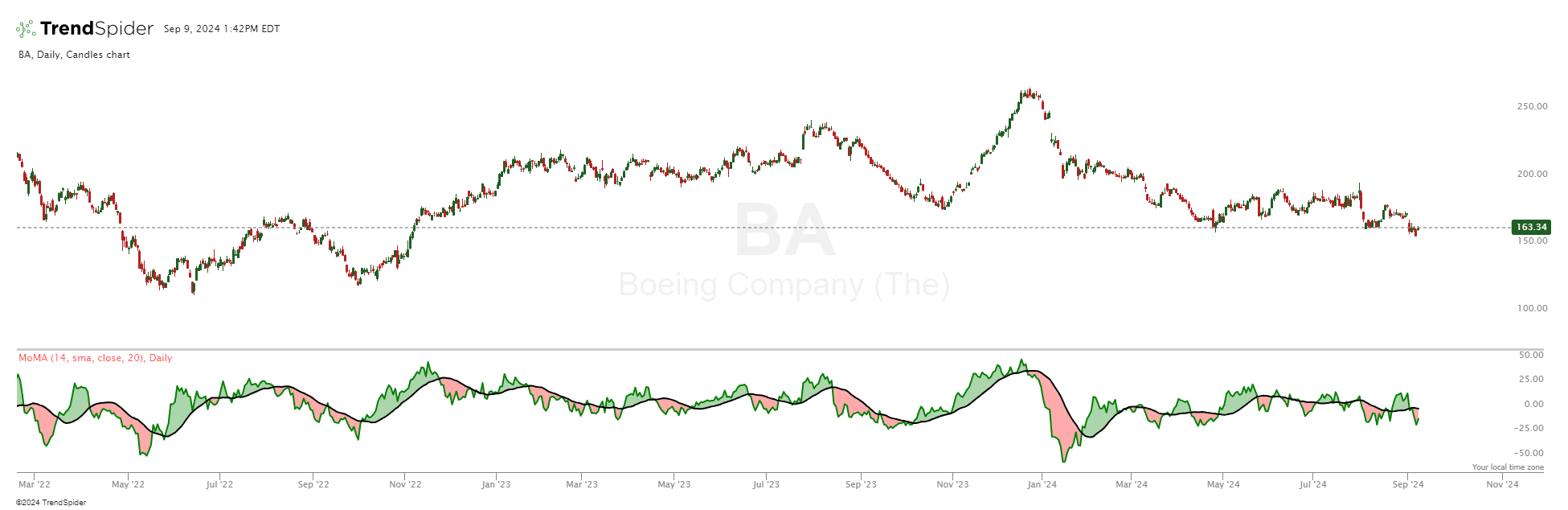

Chart featuring the Momentum with Custom Moving Average indicator

Source code

This indicator had been implemented by James in JavaScript on TrendSpider. Check out the developer documentation to learn more about JS on TrendSpider.

// This was generated with AI and did not pass any quality assurance processes used at TrendSpider
// As a result, I can’t guarantee that it will operate as expected in all cases and you should
// use caution when using this indicator. Consider it for informational purposes only.

// Define the Momentum with Custom Moving Average Indicator
describe_indicator('Momentum with Custom Moving Average', 'lower', {
    shortName: 'MoMA',
    decimals: 2
});

// Input parameters for the Momentum, Moving Average, and Price Source
const momentumLength = input.number('Momentum Length', 14, { min: 1, max: 100 });
const maType = input('MA type', 'sma', constants.ma_types); // Dynamically get all available MA types
const priceSource = input('Price Source', 'close', constants.price_source_options); // Dynamically get available price sources
const maLength = input.number('Moving Average Length', 20, { min: 1, max: 100 });

// Get the selected price source
const priceData = prices[priceSource];

// Calculate the Momentum based on the selected price source
const momentumValues = priceData.map((value, index) => {
    if (index < momentumLength) return null;
    return value - priceData[index - momentumLength];
});

// Function to calculate different types of moving averages
function calculateMA(data, length, type) {
    let maValues = [];
    switch (type) {
        case 'ema':
            maValues = ema(data, length);
            break;
        case 'wma':
            maValues = wma(data, length);
            break;
        default:
            maValues = sma(data, length);
            break;
    }
    return maValues;
}

// Calculate the selected Moving Average on Momentum
const maValues = calculateMA(momentumValues, maLength, maType);

// Paint the Momentum line (Green color)
const paintedMomentum = paint(momentumValues, {
    name: 'Momentum',
    color: 'green',
    thickness: 2
});

// Paint the Moving Average line (Black color)
const paintedMA = paint(maValues, {
    name: 'MA',
    color: 'black',
    thickness: 2
});

// Use color_cloud to fill green when MA < Momentum and red when MA > Momentum
color_cloud(
    maValues,
    momentumValues,
    'red',  // Fill green when MA < Momentum
    'green'     // Fill red when MA > Momentum
);
